Светодиодный аварийный светильник IP65 с интеллектуальным управлением | 10 Вт | Дистанционное регулирование яркости и настройка цветовой температуры | Аварийная мощность 900 лм HM-BHD04

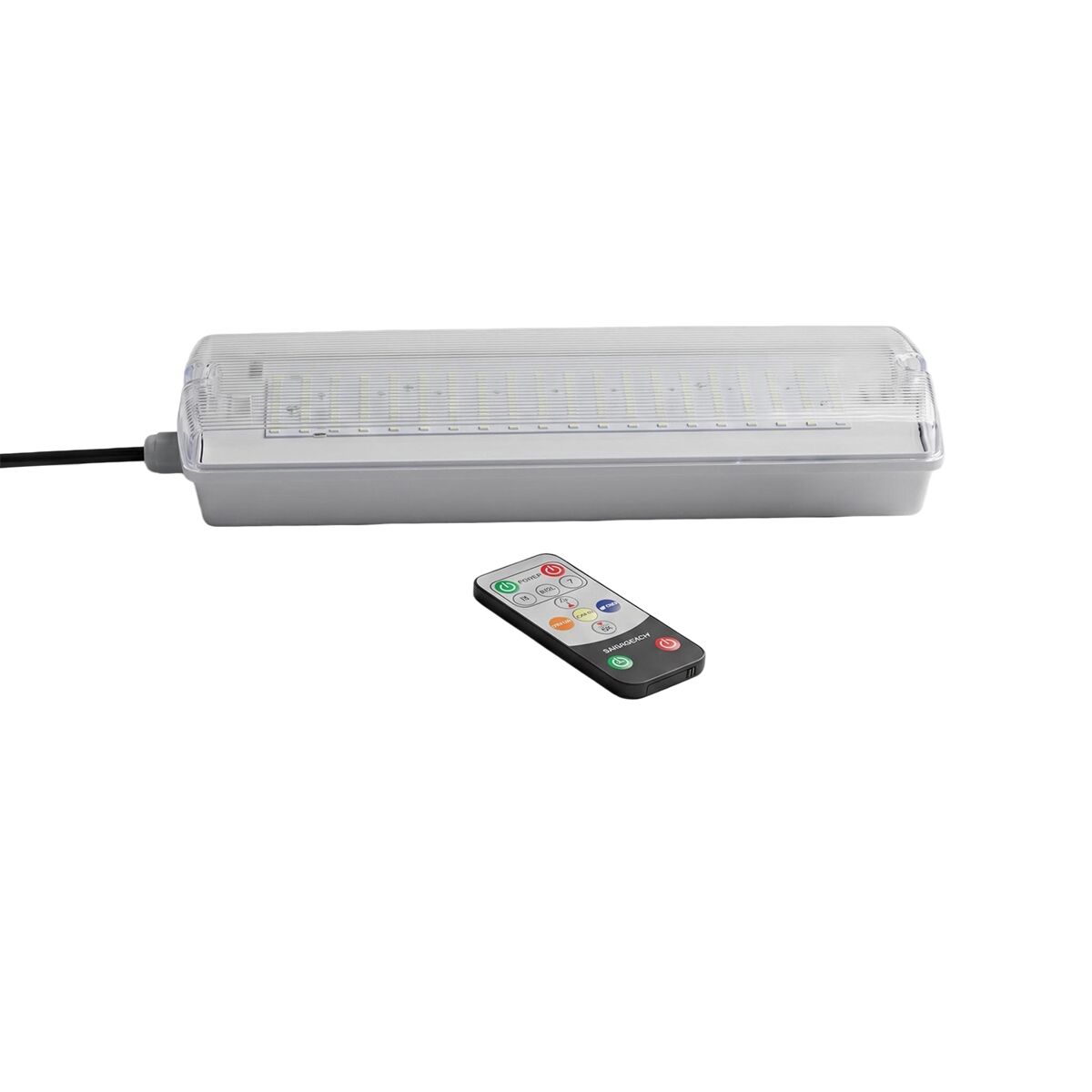

HM-BHD04 Intelligent IP65 Emergency & Everyday Lighting Solution

The HM-BHD04 is a high-performance, multifunctional bulkhead designed for both reliable emergency backup and high-quality daily lighting. Delivering a powerful 900 lumens in emergency mode, it offers full flexibility with remote-controlled 20-100% dimming and CCT tuning (2700K-6500K). Built with a rugged IP65-rated PC housing and a massive 5000mAh battery, it ensures a guaranteed 3-hour runtime. Whether surface or recessed mounted (frame included), this unit is the ultimate smart choice for tunnels, parking decks, and industrial facilities.

  • Мощность светодиодов:10W (Main) / 6W (Emergency)
  • Продолжительность чрезвычайной ситуации: 180 минут
  • Регулировка яркости :20-100% (через пульт дистанционного управления)
  • Аккумуляторная батарея: Li-ion 3.7V 5000mAH
  • Люмен : 900lm(Main)/680lm(Emergency)
  • Управление :Remote
  • Класс защиты по IP: IP65
  • Материал: ПК
  • Установка:Surface +Recessed mounting
  • Режим работы: Аварийное освещение
  • Сертификация: CE / RoHS

ПОЛУЧИТЕ МГНОВЕННЫЙ РАСЧЁТ


    ОСОБЕННОСТИ

    Сведения о товаре

    Описание

    HM-BHD04: The Next Generation of Intelligent Emergency Lighting

    Этот HM-BHD04 redefines the emergency bulkhead by combining industrial-grade durability with smart lighting controls. Unlike traditional fixed-output units, this model functions as both a high-efficiency everyday light and a high-output emergency terminal. With the ability to adjust brightness and color temperature via remote control, it adapts perfectly to any environmental requirement while maintaining strict safety standards.

    Основные особенности:

    • Smart Remote Control:Effortlessly adjust the ambiance with 20-100% dimming и tunable white light (2700K-6500K). This feature allows for energy savings and comfort-matching in diverse workspaces.
    • High-Output Emergency Backup:Switches to a high-intensity 6W emergency mode delivering 680 lumens, ensuring maximum visibility during power failures.
    • Massive Energy Reserve:Equipped with a high-capacity 3.7V 5000mAh Li-ion battery to support a sustained Продолжительность чрезвычайной ситуации — 3 часа.
    • IP65 Weatherproof Housing:Constructed from high-impact Материал для ПК, providing total protection against dust and water ingress in harsh industrial or outdoor settings.
    • Dual-Purpose Operation:Engineered for “Emergency + Lighting” mode, serving as a primary light source daily and an automated safety guide during emergencies.
    • Flexible Installation:Supports both Surface Mounted и Recessed Mounted configurations; the dedicated recessed frame is included for a clean, professional finish.

    Технические характеристики:

    Модель HM-BHD04
    Мощность светодиодов 10W (Main) / 6W (Emergency)
    Входное напряжение 220–240 В переменного тока, 50/60 Гц
    Цвет Поворот 2700K-6500K (via Remote)
    Регулировка яркости 20-100% (через пульт дистанционного управления)
    Тип аккумулятора Li-ion 3.7V 5000mAh
    Время работы в аварийном режиме ≥ 180 минут (3 часа)
    Люмен 900lm(Main)/680lm(Emergency)
    Установка Surface +Recessed Mounting
    Размеры 350 × 110 × 75 мм
    Режим работы Аварийное освещение
    Время зарядки 24 часа
    Материал ПК
    Управление Remote
    Степень защиты по стандарту IP IP65
    Гарантия 3 года
    Стандартный EN 60598-2-22
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04
    IP65 Smart LED Emergency Bulkhead | 10W | Remote Dimmable & CCT Tunable | 900lm Emergency Output HM-BHD04



    HM-BDH04 IP65 Smart LED Emergency Bulkhead FAQ:

    Q1: How does the dimming and CCT tuning feature benefit industrial facility managers?
    A: Этот HM-BHD04 offers unparalleled control through its remote dimming (20-100%) и CCT tuning (2700K-6500K). Managers can lower brightness to save energy in low-traffic areas or adjust the color temperature to daylight (6500K) for high-focus tasks. During an emergency, the unit automatically bypasses these settings to provide full-intensity 900lm output for maximum safety.

    Q2: Is the battery capacity of the HM-BHD04 sufficient for high-lumen emergency needs?
    A: Да. Это 3.7V 5000mAh Li-ion battery is a high-capacity power cell specifically chosen to drive the 6W emergency output. This ensures that the unit doesn’t just “glow” but provides a functional 680lm of light for the entire 3 часа автономной работы в экстренном режиме, which is critical for large-scale industrial evacuations.

    Q2: Can this bulkhead be installed in environments with high moisture or dust?
    A: Absolutely. With its IP65 rating and high-impact Материал для ПК construction, the HM-BHD04 is designed to withstand harsh conditions, including water jets and heavy dust. This makes it an ideal solution for outdoor walkways, loading docks, tunnels, and damp industrial zones.



    Технические характеристики

    Модель HM-BHD04
    Мощность светодиодов 10W (Main) / 6W (Emergency)
    Входное напряжение 220–240 В переменного тока, 50/60 Гц
    Цвет Поворот 2700K-6500K (via Remote)
    Регулировка яркости 20-100% (через пульт дистанционного управления)
    Тип аккумулятора Li-ion 3.7V 5000mAh
    Время работы в аварийном режиме ≥ 180 минут (3 часа)
    Люмен 900lm
    Установка Поверхностный монтаж
    Размеры 350 × 110 × 75 мм
    Режим работы Аварийное освещение
    Время зарядки 24 часа
    Материал ПК
    Управление Remote
    Степень защиты по стандарту IP IP65
    Гарантия 3 года
    Стандартный EN 60598-2-22

    Часто задаваемые вопросы

    Q1: How does the dimming and CCT tuning feature benefit industrial facility managers?
    A: Этот HM-BHD04 offers unparalleled control through its remote dimming (20-100%) и CCT tuning (2700K-6500K). Managers can lower brightness to save energy in low-traffic areas or adjust the color temperature to daylight (6500K) for high-focus tasks. During an emergency, the unit automatically bypasses these settings to provide full-intensity 900lm output for maximum safety.

    Q2: Is the battery capacity of the HM-BHD04 sufficient for high-lumen emergency needs?
    A: Да. Это 3.7V 5000mAh Li-ion battery is a high-capacity power cell specifically chosen to drive the 6W emergency output. This ensures that the unit doesn’t just “glow” but provides a functional 900 lumens of light for the entire 3 часа автономной работы в экстренном режиме, which is critical for large-scale industrial evacuations.

    Q3: Can this bulkhead be installed in environments with high moisture or dust?
    A: Absolutely. With its IP65 rating and high-impact Материал для ПК construction, the HM-BHD04 is designed to withstand harsh conditions, including water jets and heavy dust. This makes it an ideal solution for outdoor walkways, loading docks, tunnels, and damp industrial zones.




      Сопутствующие решения для экстренного освещения и светодиодного освещения

      Являясь специализированным производителем, основанным в 2013 году, мы разрабатываем широкий ассортимент светодиодных источников питания для аварийного освещения, комплектов резервного питания и высокоэффективных светодиодных лент. Ознакомьтесь с нашими соответствующими конфигурациями, разработанными в соответствии с международными техническими стандартами и нормами.
