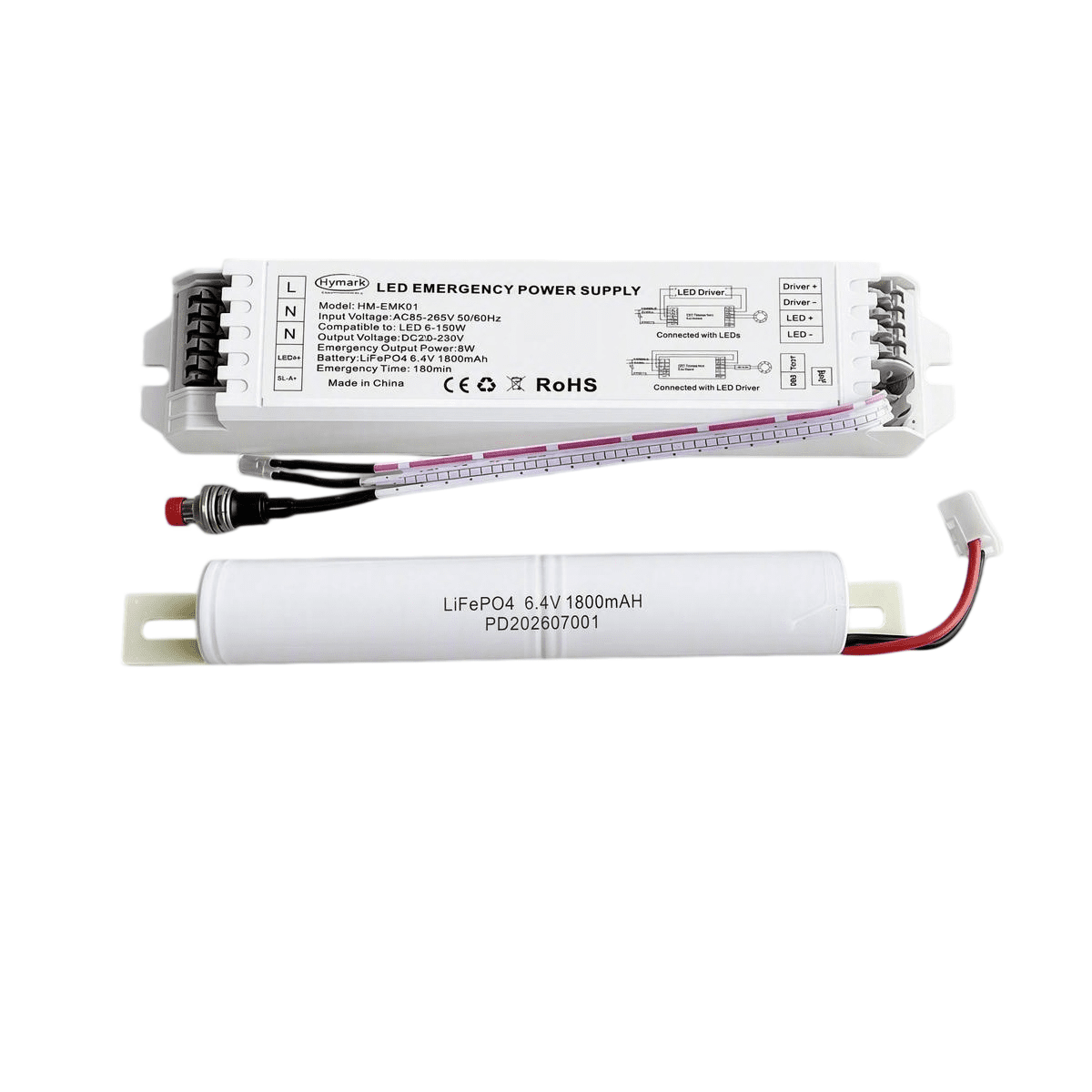

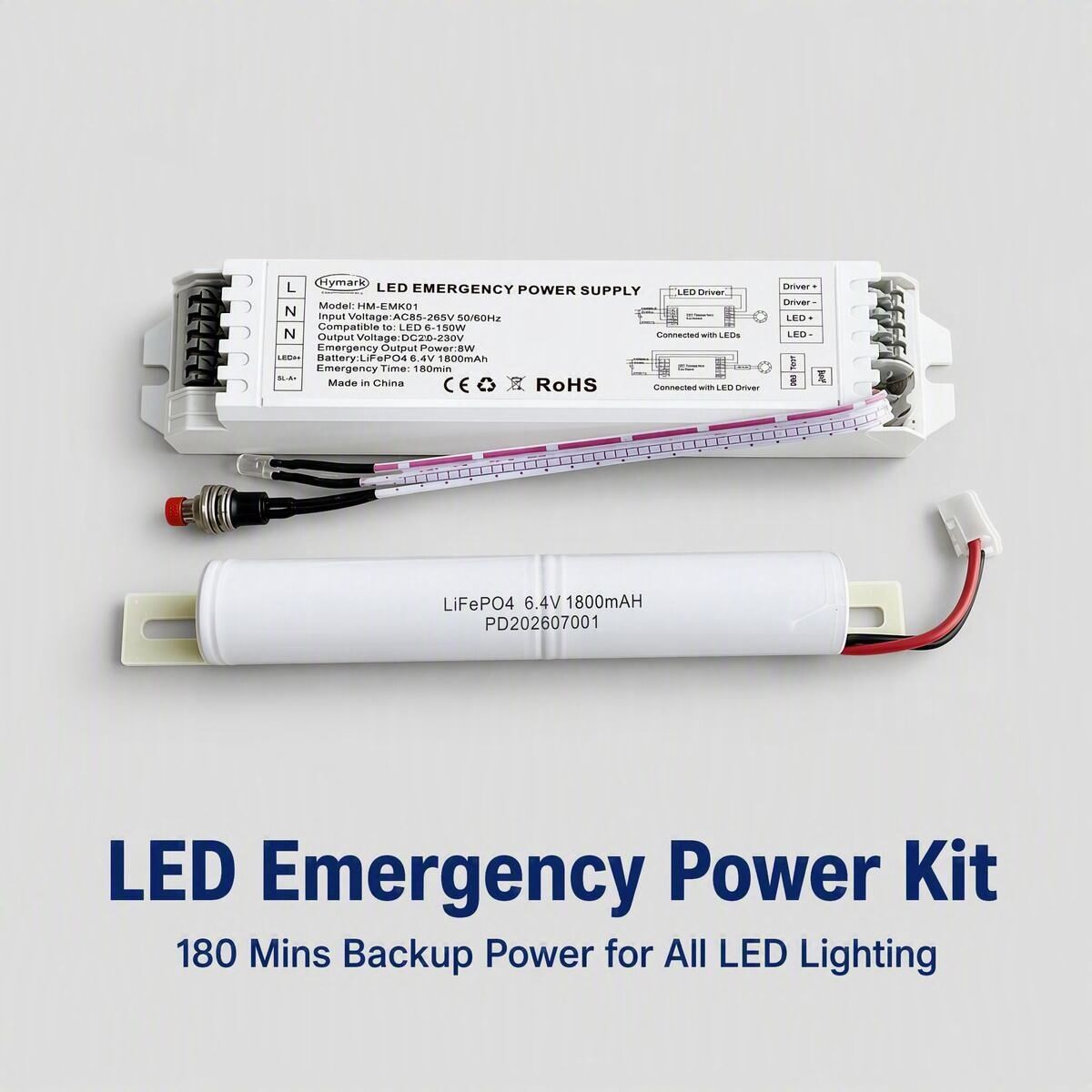

The Universal LED Emergency Power Kit (Model: HM-EMK01-P08W) offers a highly compatible backup driver solution designed to convert standard LED luminaires into emergency lighting fixtures. Designed with a wide DC 20-380V output range, long-lasting LiFePO4 battery, and intelligent IC circuit protection, it seamlessly pairs with internal or external LED drivers, including DOB high bays, LED tubes, panels, and downlights.
Key Features:
Universal Compatibility Across LED Fixtures Eliminate inventory clutter with a single emergency module that supports 8W to 150W LED lamps. The ultra-wide output voltage (DC 20-380V) automatically detects and regulates LED load parameters. It connects seamlessly to:
- Internal Driver Lamps:Driver-on-Board (DOB) UFO high bays, LED T8/T5 tubes, Tri-proof lights.
- External Driver Lamps:LED panels, recessed downlights, linear LED fixtures, and spotlights.
- Advanced Battery & Circuit Protection
- Safe LiFePO4 Chemistry:Powered by a high-grade 6.4V 1800mAh LiFePO4 battery that delivers over 2,000 charging cycles, exceptional high-temperature resistance, and zero risk of explosion.
- 180-Minute Emergency Runtime:Provides reliable 8W constant emergency power output for up to 3 hours during sudden grid outages.
- Intelligent Self-Test & Manual Test:Includes integrated diagnostic capabilities alongside a manual test switch and LED status indicator for hassle-free maintenance.
- Smart IC Safety Control:Precision IC monitoring protects against over-charging, over-discharging, short circuits, and reverse polarity.
Technical Specifications:
| Model | HM-EMK01-P08W |
| Compatible Light Power | 8W -150W LED Fixtures |
| Input Voltage | AC85-265V,50/60Hz |
| Output Voltage | DC20-380V |
| Battery | LiFePO4 6.4V 1800mAh |
| Emergency Power | 8W |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Surface Mounting |
| Dimenstions | 350*110*75mm |
| Working Mode | Emergency+Lighting |
| Charging Time | 24hours |
| Material | ABS |
| Testing Mechanism | Automatic Self-Test + Manual Test Switch |
| Warranty | 4years |
| Applications | DOB Lights, Panels, Downlights, Tubes, Tri-proof & Linear Lights |
| Standard | EN60598-2-22 |

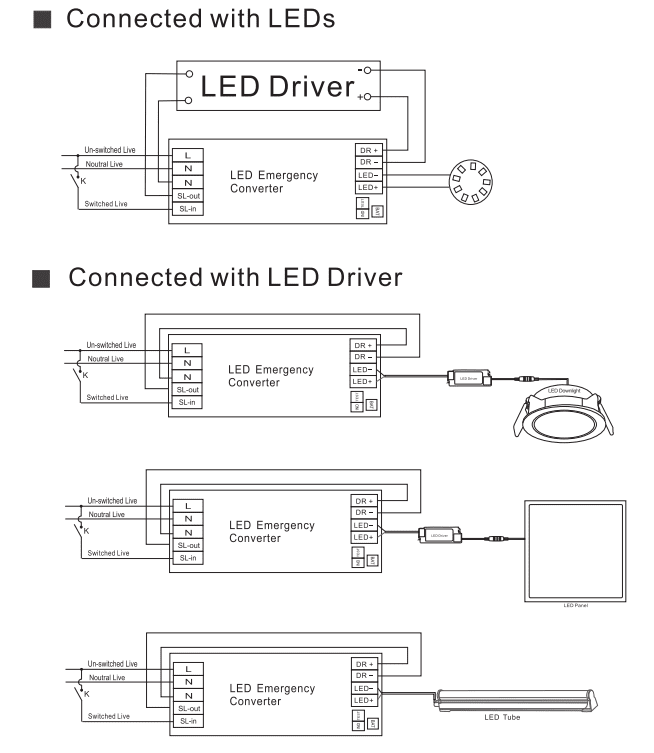

Application Wiring Diagrams:
The HM-EMK01-P08W features clear wiring terminals for straightforward installation across different fixture types:
- Connected with LEDs (Internal Driver / DOB):Connects directly to the AC grid and load terminals for DOB UFOs, LED tubes, or integrated boards.
- Connected with LED Driver (External Driver):Plugs in series between the external LED driver and the luminaire (Panel, Downlight, or Linear light) without disturbing normal light operations during standard power conditions.
Frequently Asked Questions (FAQ)：
Q1: How does the auto-sensing DC 20-380V output voltage work?
A: The HM-EMK01 utilizes an intelligent IC control chip that automatically detects the forward voltage of the connected LED load (from DC 20V up to 380V) and adjusts the output voltage dynamically to deliver a stable 8W emergency backup.
Q2: Can I use this emergency module for high-wattage fixtures like 150W UFO High Bays?
A: Yes. The HM-EMK01 is compatible with mains-powered lamps ranging from 8W up to 150W. During normal AC operation, the light functions at full power. When main power fails, the kit switches the lamp to operate at an 8W emergency output power for 180 minutes.
Q3: Is the LiFePO4 battery replaceable?
A: Yes, the 6.4V 1800mAh LiFePO4 battery pack connects via a quick-connect plug, allowing easy replacement or routine safety maintenance without replacing the main emergency driver module.
