3W to 50W Led Emergency Kit

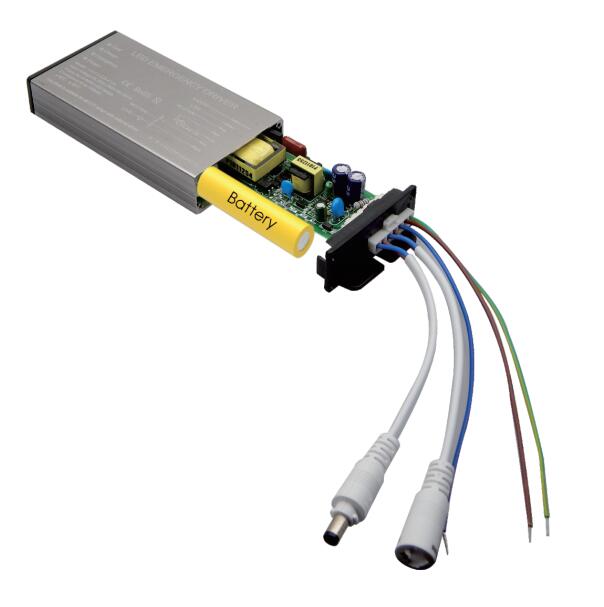

Led Emergency Kit it is a LED Emergency Driver,The emergency drive circuit board and single lithium ion battery are built-in the aluminum alloy casing,it is safety for using.Emergency Driver for led light with external driver.

3-50W LED Emergency Module FAT-LED-F1A
1. Lighting fixture power: 3-50W
2. Emergency power: 3-5W
3. Battery type: built-in  3.7V 2400mAH/3500mAH lithium ion battery
4. Emergency duration time: 2/3 hours
5. Battery cycle time: 500-800 times
6. Working input/output voltage: AC85-265V , DC10-138V
7. Charge time: ≤24 hours
8. Protection degree: IP30
9. Certificate: CE Rohs
10. Warranty: 3 years

Send Inquiry
Product Details
Led Emergency Kit it is a LED Emergency Driver , The emergency drive circuit board and single lithium ion battery are built-in the aluminum alloy casing, it is safety for using.Emergency Driver for led light with external driver.

1. Lighting fixture power: 3-50W
2. Emergency power: 3-5W
3. Battery type: built-in  3.7V 2400mAH/3500mAH lithium ion battery
4. Emergency duration time: 2/3 hours
5. Battery cycle time: 500-800 times
6. Working input/output voltage: AC85-265V , DC10-138V
7. Charge time: ≤24 hours
8. Protection degree: IP30
9. Certificate: CE Rohs
10. Warranty: 3 years

Applicable to all kinds of LED lamps with external driver.
Self-check function ( 30 days and every year ).

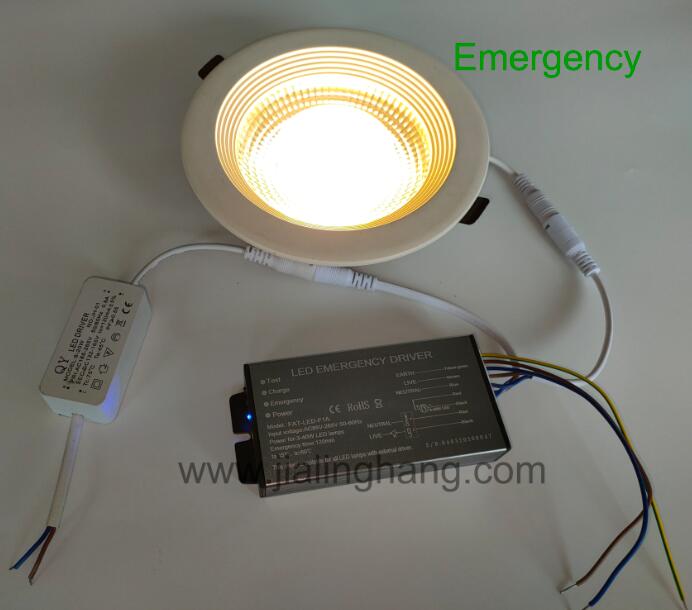

Automatically turns on LED light when  main power failure.
LED emergency power pack has overload protection, short circuit protection, overcharge and over-discharge protection, wire fault connection protection, over temperature protection.
External indicator: green=power, red=charging, blue=emergency
Working Environment attention :
LED Emergency Conversion Kit working temperature between -5℃ and 45℃.
If the Led Emergency Backup Driver is not used for over 3 months, it should be connected to AC power to full charging and discharging ( until LED lamp is completely off ).
